VERSIS 220/75
Big and Comfortable

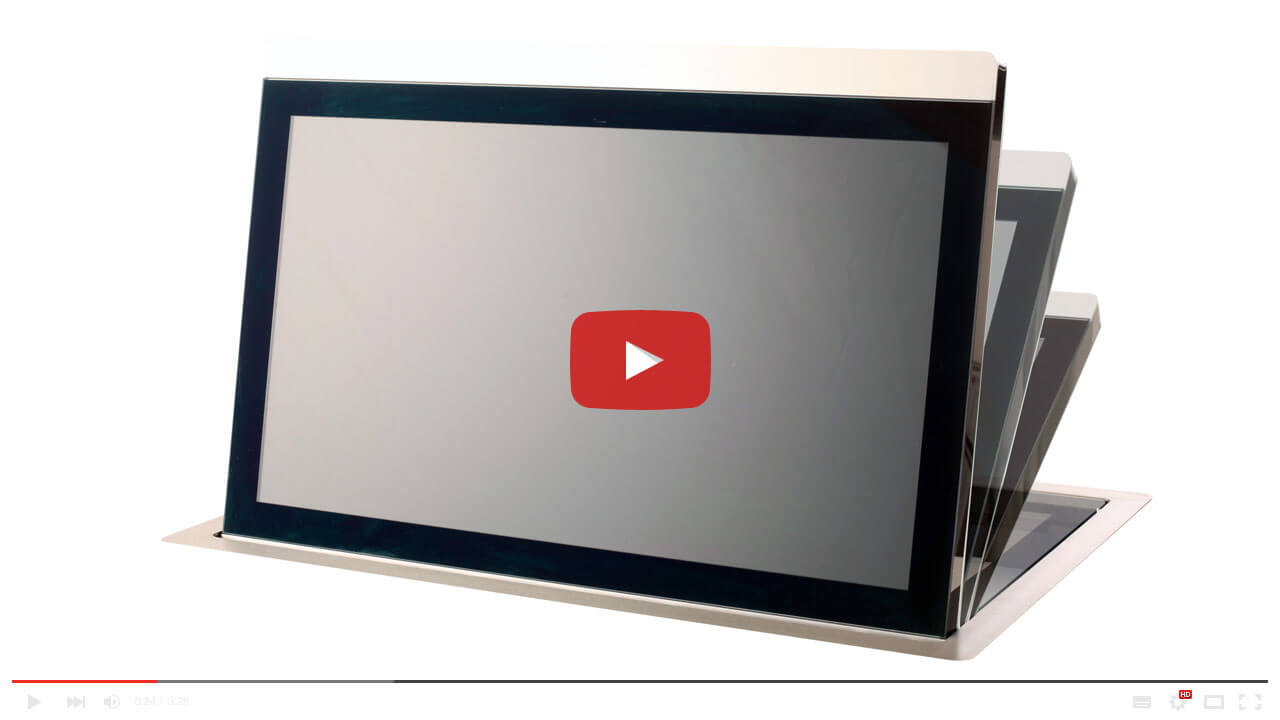

The VERSIS 220/75 is always at your disposal, when you need it: Folding out of the table surface, stepless adjustable and whisper-silent.
ELEVATED PERSPECTIVE
The viewing area of the monitor is always visible, in opened or closed position. Available with or without touch screen. Easy to install and easy to control. Intelligent and robust. And the applications are numerous, from the lectern to the lounge table.
No matter what the environment, the VERSIS /75 variant is highly adaptable. Hinged at the front, the display may be raised to user defined heights for individual ease. Perfect for Video Conferencing applications as well as compact info-terminals.
ERGONOMIC PREVIEW
Quality.
The installation in the table in front of the auditorium is ideal for the ergonomic preview of the visual data.
SPECIFICATIONS
Functionality: Motorized 21,5“ Monitor for furniture integration; monitor raises on front axis towards user; electronic Anti Clamp Protection; water & dust according protection class IP 54 . Control via button or remote (TCP/IP or serial)
Motor & Mechanics: 12 V virtually noiseless (< 40 dB) stepper motor for monitor motion, with precise & simultaneous drive e.g. to control multiple monitors; maintenance free
Material: Monitor – Aluminum silver anodized & 3mm protective antireflective glass; Trim – Black Acrylic glass decorative inlay; Chassis & Cartouche – Brushed high-grade steel, Aluminum & POM
Dimensions 585 x 440 x 86mm
Mass 15 kg
Height (lifted) 350 mm at 80°
Monitor Full HD 21,5“ LED TFT; HDCP compliant; Active Matrix; Widescreen
Brightness 250 cd/m²
Contrast Ratio 1000:1
Resolution 1920 x 1080 – Full HD (16:9), 16,7 M color
Pixel Size 0.1989 x 0.1989 mm
Viewing Angle Horizontal 178° / Vertical -178°
Viewing Area 475,20 (H) x 267,30 (V) mm
LED Lifetime up to 50.000 hrs
Video Interface HDMI (additional DisplayPort optional available)
Remote Control
TCP/IP on-board via RJ45 interface 9-PIN d-sub serial interface for remote control, adjustment of motion parameter, firmware update (E1 cable and software required)
Power Consumption 15 W Certificates CE, FCC
Warranty 5 years; extendable (optional, surcharge) spare part availability 10 years
Scope of supply: Power adapter – Input: 100-240V~, 50/60Hz. 1.5A; Output: 12V 5.A 60W MAX (cable length: DC ~140 cm; AC ~ 1,5 m)
